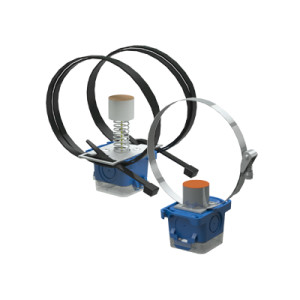

BA/100K-S | BAPI | Temperature Sensors & Transmitters

Accuracy: Thermistor: ±0.36°F (±0.2°C); RTD: ±0.55°F (±0.30°C)

Sensor Type:

Thermistor: 10 kΩ Type II & III

RTD: 100Ω, 1000Ω, 385 curve; 1000Ω, 375 curve

Temperature Range:32° to 158°F (-0° to 70°C)

Thermistor:

Temperature Output: Resistance

Accuracy: ± 0.36°F (± 0.2°C)

Stability: < 0.036°F/Year (< 0.02°C/Year)

Heat Dissipation: 2.7 mW/°C

Temperature Drift: < 0.02°C/Year

Probe Range: -40 to 221°F (-40 to 105°C)

RTD:

Stability: ± 0.25°F (± 0.14°C)

Self Heating: 0.4 °C/mW @0°C

Probe Range: -40 to 221°F (-40 to 105°C)

Nickel (Ni): 1000Ω @ 70°F, JCI curve

Ni Probe Range: -40 to 221°F (-40 to 105°C)

Enclosure Rating:

JB: NEMA 1, 2x4 steel handy box

BB: NEMA 4, BAPI Box IP66 rated UV-resistant plastic enclosure

BB2: NEMA 4, BAPI Box 2 IP66 rated UV-resistant plastic enclosure

BB4: NEMA 3R, BAPI Box 4 IP44 nylon and plastic enclosure

Mounting: Straps or Clamps to pipe

Wiring Terminations: 22 AWG wire, etched teflon leads

Weight: JB, BB4: 0.75 lb (0.34 Kg); BB, BB2: 1.0 lb (0.45 Kg)

Approvals: CE, RoHS

Warranty: Lifetime
